Bag length 430mm fully automatic take away food Paper Bag Manufacturing Machine
Bag length 430mm fully automatic take away food Paper Bag Manufacturing Machine is forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing, and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags, and Mcdonald’s bags.
Technical parameters
| Type | PFFD-330D |
| Bag Length(L) | 270-530 mm |
| Bag Width(W) | 120-330 mm |
| Insert size | 60-180mm |
| Bag Speed | 30-180 pcs/min |
| Paper Thickness | 60-150 gsm |
| Paper Roll Width | 380-1050 mm |
| Max.Roll Diameter | 1200 mm |
| Reel Inner Diameter | 76 mm |
| Total Power | 18.5 kw 380V3(phase)4(wire) |
| Weight of Machine | 8500 kg |
| Overall Dimension(LxWxH) | 10000*3700*2200 mm |
Details
Advantage

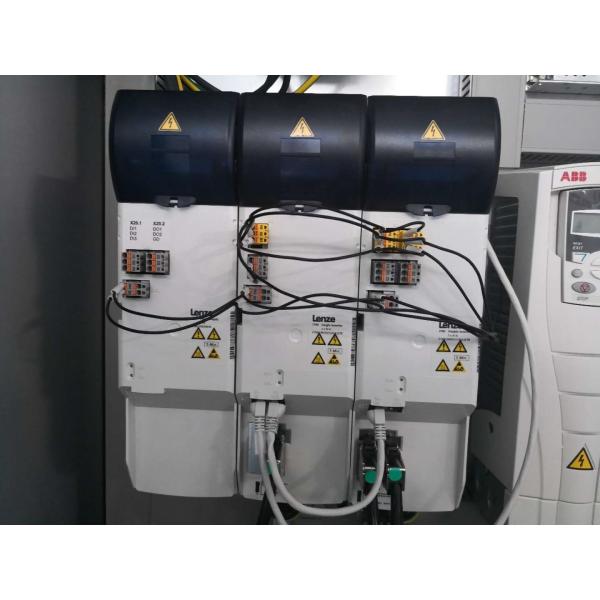

1.Germany (Lenze) servo motor , motion controller through more than 100 MB, servo driver through the power line and the encoder integrated line control servo motor operation, to achieve high speed and high precision motion control.
2.Germany Lenze motion controller (CPU), motion controller through more than 100 MB, servo driver through the power line and the encoder integrated line control servo motor operation, to achieve high speed and high precision motion control
3.Adopt the France SCHNEIDER touch screen man-machine interface control system, operating at a glance.
4.Germany (Lenze) servo motor driver, motion controller through more than 100 MB, servo driver through the power line and the encoder integrated line control servo motor operation, to achieve high speed and high precision motion control.
♦FAQ♦
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
Thanks for visiting our web, if any interests or questions,please don't hesitate to contact us, we will do our best for you, your kind inquiry will be replied as soon as we can.
